Choosing the Right Starter Motor or Alternator: Matching Vehicle Model, Engine Size & Electrical Load

You may be thinking that choosing the right starter motor or alternator is about grabbing one that really fits in your vehicle. Make sure it really matches the car because not only getting the right part the first time saves so much time it also saves money and stress. Even if we are talking about a small sedan, a diesel truck or even a custom off-road ride it always need to match the part perfectly from the start because many drivers overlook this step until they experience it on their own. That’s why it is important for you to know how these components work together because it can help you choose the right replacement and keep your vehicle running smoothly every day.

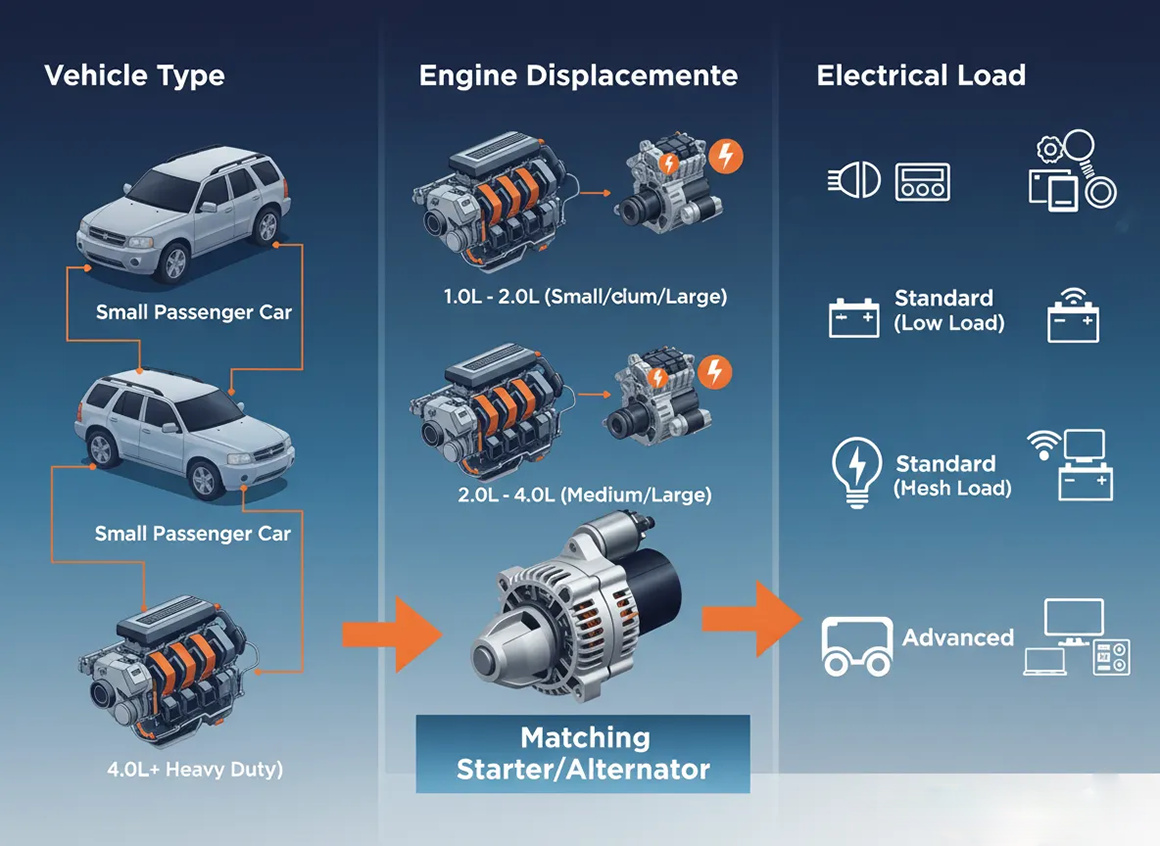

How vehicle size and engine displacement affect power needs.

I learned that the size of your vehicle and how strong the engine is really matter when you are choosing a starter motor or alternator. I found out that bigger engines need a lot more power to start, so they use stronger starter motors with higher torque. For example, a small 1.3-liter hatchback only needs a small starter that uses moderate current but a 3.0-liter V6 or a diesel truck engine needs a heavy-duty one to handle the extra compression and resistance when starting up. I remember using a starter that was too small once. The engine cranked slowly, got hot and after some time, it just stopped working.

I realized that the bigger the engine and the more gadgets your car has, the more power the alternator needs to supply. A small car is enough with a 70-amp alternator but an SUV or pickup with multiple electronics need a 120- to 180-amp model to keep the battery charged and all systems working properly.

Electrical load requirements in modern vehicles.

I’ve noticed that modern cars use a lot more electricity than those from years ago . Nowadays, they don’t power the headlights and air conditioning anymore, now they also run all sorts of electronic systems. I saw before what happens when an alternator isn’t strong enough, it struggles like the lights start to dim when you turn on too many accessories, the windows move slowly and sometimes the battery keeps draining faster than usual.

My experience in my Toyota Corolla the standard alternator handled daily driving good but after I added lights or extra sensors it started to struggle a bit. That’s when I realized it needed more powerful alternator. It’s always smart to check your car’s total electrical needs including anything you might add later, you can keep the voltage stable, protect the battery and make everything run good.

Small cars vs heavy-duty trucks: different selection rules.

I noticed that small cars and heavy-duty trucks power and load conditions works differently, the way you choose their starter motors and alternators isn’t the same.

Small vehicles, like sedans or hatchbacks, use smaller engines with lower compression ratios typically need compact starter motors that deliver enough torque to start the engine efficiently without using too much current from the battery. These also have fewer high-power accessories, meaning a standard alternator usually rated between 70 and 100 amps is enough to keep the system running smoothly.

However heavy-duty trucks run large displacement engines that need more torque to start, often use high-compression diesel engines. Which are tougher to start, especially in cold weather. As a result, these vehicles need heavy-duty starter motors with reinforced gears and stronger solenoids. Using a small starter on such an engine can cause overheating or gear damage within a short period.

When it comes to alternators, trucks and commercial vehicles often carry heavier electrical loads that runs air compressors, power lifts, large lighting systems and cabin electronics. Setups like that need alternators rated anywhere from 150 to 250 amps or more. Many trucks even use dual alternator systems for added reliability and output stability.

Practical tips for choosing the right alternator or starter motor.

If the time comes to change your alternator or starter motor choosing the right one will save you from repeated repairs and weak performance. You need to start checking your vehicle’s OEM part number or the label on your old unit. This is the most reliable reference when buying a replacement.

Next is to check the amperage rating for alternators for starter motors. For alternators you have to make sure the amp rating meets or slightly exceeds your vehicle’s total electrical load. If you add high-power accessories like off-road lights or upgraded sound systems. Choose more powerful alternator to handle the additional loads. For starter motors , make sure the substitute give enough starting power for your engine’s size and compression level mostly important for diesel engines or high-performance setups. It’s also smart to think about how it fits and how it mounts. Even small differences in bolt pattern or best alignment can cause installation issues. Check the plug connector and pulley type should match your existing setup.

If you often drive in environments like dusty roads or high temperatures , choose parts with enhanced sealing or protection. For example, some strong alternators characteristics sealed bearings and heat-resistant windings, while premium starter motors use stronger brush materials for long term use.

Always buy from trusted brands because cheap unbranded parts may look similar but can fail quickly because of weak parts. Using a little more on a well-made alternator or starter motor is worth it for long term use.
