Repair of Car Starter

1. Visual Inspection

◆ Check starter housing for cracks, deformations, or oil stains. And ensure cable connections are secure and terminals are not corroded or loose.

2. Power Check

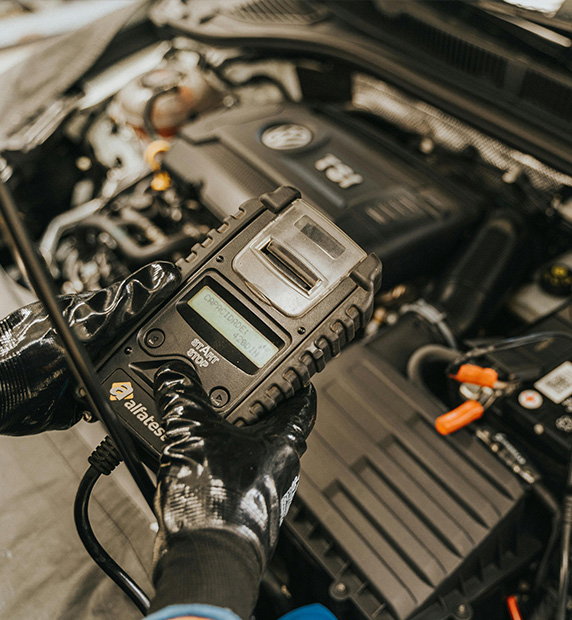

◆ Measure battery voltage with a multimeter (should be ≥12V).Verify power and signal cables are energized.

3. Solenoid Test

◆ Directly power the solenoid to check operation. And inspect contacts for burning; clean if needed.

4. Motor Test

◆ Directly power the motor to check operation. Inspect carbon brushes (replace if >50% worn) and armature windings for faults.

5. Clutch Check

◆ Manually rotate pinion gear to confirm one-way clutch function.And Check for wear or damage on the pinion gear.

6. Gear Check

◆ Inspect pinion and flywheel gear engagement for wear or damage. Lubricate gears if necessary.

Troubleshooting Common Faults of Starter Motors

1. Starter Does Not Work at All

◆ It may be due to a dead battery, poor cable connections, a faulty solenoid switch, or an internal open circuit in the motor. In this case, check the power supply, clean the terminals, and test the solenoid switch and motor.

2. Starter Spins but Does Not Engage (Pinion Gear Does Not Mesh)

◆ It could be caused by a slipping one-way clutch or a malfunctioning solenoid plunger. Replace the one-way clutch or solenoid switch to resolve the issue.

3. Starter Cranks Slowly

◆ It is often due to insufficient battery charge, high cable resistance, worn carbon brushes, or shorted windings. Address this by recharging or replacing the battery, inspecting the cables, and replacing the carbon brushes or windings.

4. Starter Makes Abnormal Noise

◆ It may be caused by worn pinion or flywheel gears or a loose starter installation. Replace the worn parts or re-tighten the starter to fix the problem.

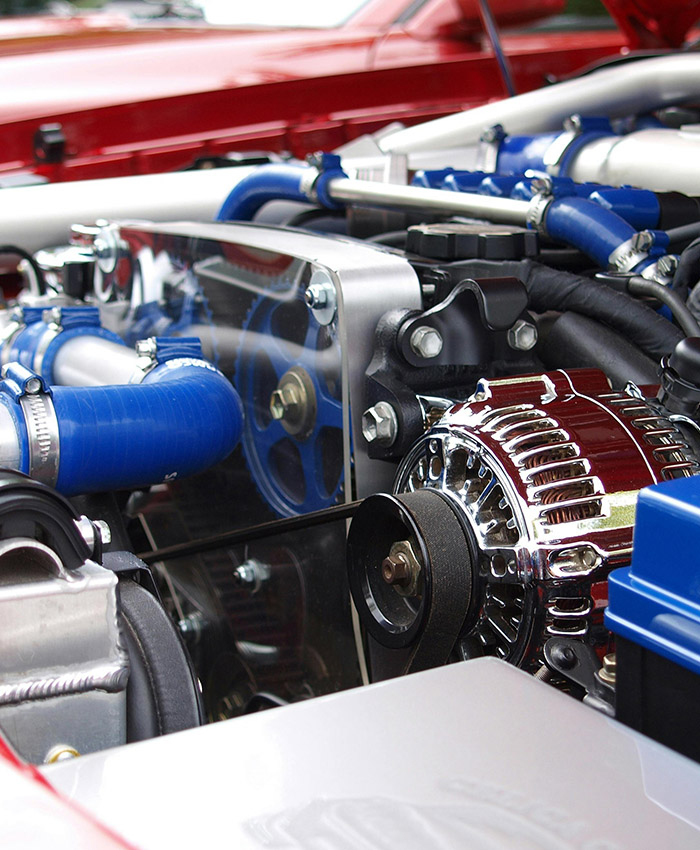

Repair the Generator

1. Visual Inspection

◆ Check the housing, belt, and cable connections for any issues.

2. Power Check

◆ Measure the generator and battery voltage to ensure they are within the normal range.

3. Pulley and Bearing Check

◆ Rotate the pulley to check for smooth operation or abnormal noises.

4. Brush and Slip Ring Check

◆ Inspect brush wear and ensure the slip ring surface is smooth.

5. Stator and Rotor Check

◆ Measure winding resistance to check for short circuits or open circuits.

6. Diode Rectifier Check

◆ Test diodes for proper conduction and replace if necessary.

7. Voltage Regulator Check

◆ If output voltage is unstable, inspect and replace the regulator.

8. Noise and Vibration Check

◆ Check for abnormal noises or looseness, and tighten or replace parts as needed.

Frequently Asked Questions

How to Extend the Life of the Starter Motor?

Avoid prolonged continuous cranking (no more than 5 seconds at a time), regularly check the battery condition to ensure sufficient voltage, and keep the starter motor surface clean to prevent dust and oil contamination.
Does the Starter Motor Require Regular Maintenance?

The starter motor generally does not require special maintenance, but pay attention to abnormal signs such as delayed starting or unusual noises. After driving 50,000 to 100,000 kilometers, it is recommended to inspect wear-prone parts such as carbon brushes and bearings.
How to Extend the Life of the Alternator?

Regularly check the belt tension and wear, replace it in time, keep electrical connections clean to prevent oxidation, and avoid prolonged overload operation, such as simultaneously using high-power devices like headlights and air conditioning.
How Often Should the Alternator Be Maintained?
Inspect the carbon brushes, bearings, and belt condition every 2 years or 30,000 kilometers, and check the alternator's output voltage and current during each routine maintenance.
How to Determine if the Alternator Needs Replacement?
If the alternator's output voltage is below 13V or above 15V and cannot be restored through repair, or if internal components (such as stator windings or rectifiers) are severely damaged and repair costs are too high, the alternator should be replaced.
