You hook up your meter, see 14 volts at the battery, and think, “Charging system looks fine.” But then the lights still dim at idle, the battery keeps dying, or the alternator seems to struggle under load. What gives? The truth is that a simple voltage reading at the battery doesn’t tell the full story. The real diagnostic power lies involtage drop testing — a technique that reveals hidden resistance and weak spots that normal tests overlook.

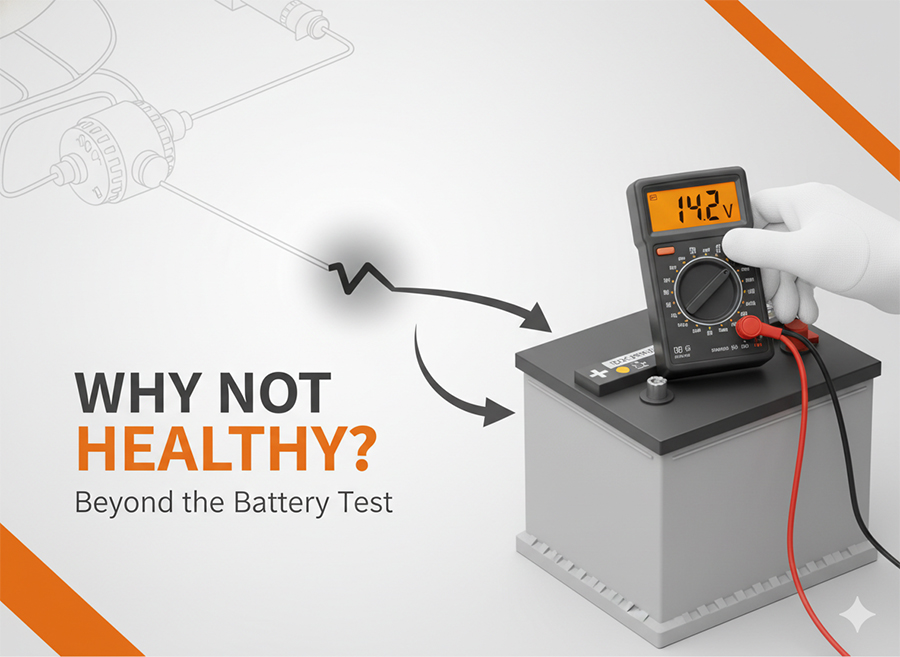

Beyond the Battery Test

A healthy charging system is aboutflow, not justpressure. When you see 14 volts at the battery, you’re only seeing the end of the line — not what’s happening along the path from the alternator to the battery and back.

Even a small amount of resistance — from a corroded connector, undersized wire, or loose terminal — can rob the system of crucial voltage under load. The alternator might be putting out 14.5 volts, but by the time it reaches the battery, maybe only 13.6 volts make it through. The systemappears fine at rest, but once current starts flowing, the weak link is exposed.

That’s where voltage drop testing comes in. It doesn’t just measure voltage — it measures how efficiently that voltage travels.

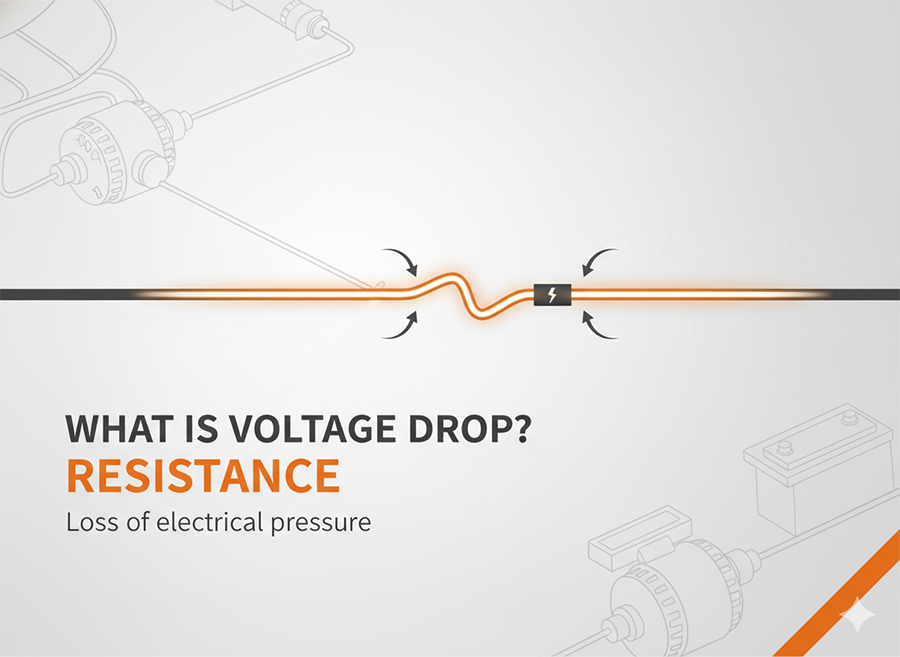

What Is Voltage Drop?

Voltage drop is theloss of electrical pressure (voltage) as current moves through resistance in the circuit. The more resistance in the wire, connector, or fuse, the greater the drop.

In theory, the alternator’s voltage and the battery’s voltage should be nearly identical while charging. In practice, a difference of more than0.3 volts on the positive side or0.2 volts on the ground side indicates a problem.

Think of it like water flow through a hose: the pump might be strong, but if there’s a kink or buildup inside, the pressure at the other end drops. Voltage drop testing finds those kinks.

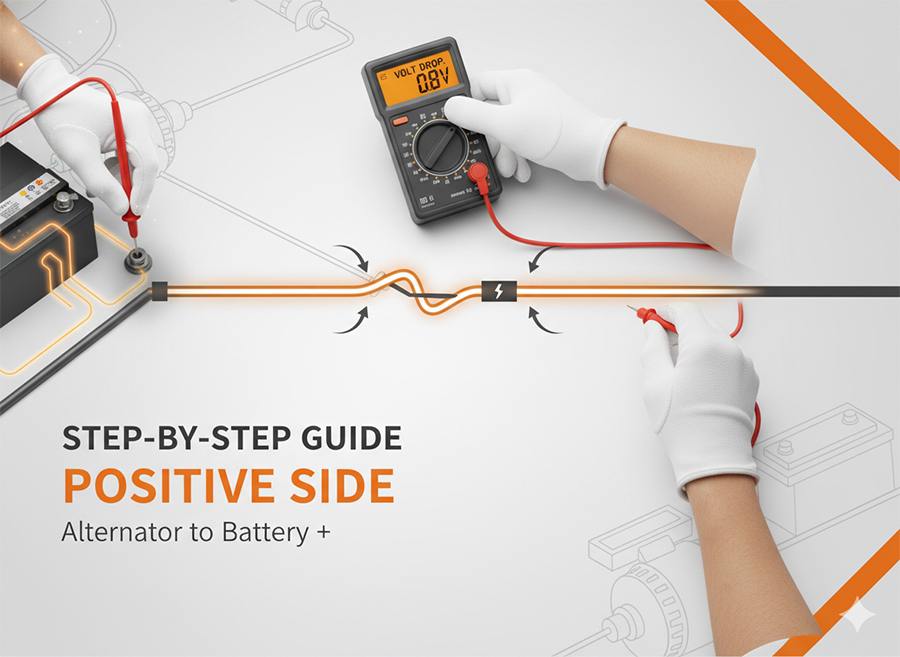

Step-by-Step Guide: Positive Side Test

Goal: Measure voltage loss between the alternator output (B+) and the battery positive terminal.

You’ll need:

• A digital multimeter (DMM)

• Access to the alternator B+ terminal and battery positive post

Steps:

1. Set your meter to DC volts.

2. Connect the red lead to the alternator’s B+ terminal.

3. Connect the black lead to the battery’s positive terminal.

4. Start the engine and turn on heavy electrical loads (headlights, blower motor, rear defrost).

5. Read the voltage.

A voltage drop of more than0.3 volts means there’s excessive resistance in the positive cable, fuse link, or connectors between the alternator and battery. Wiggle or probe along the circuit — when the reading suddenly drops, you’ve found the trouble spot.

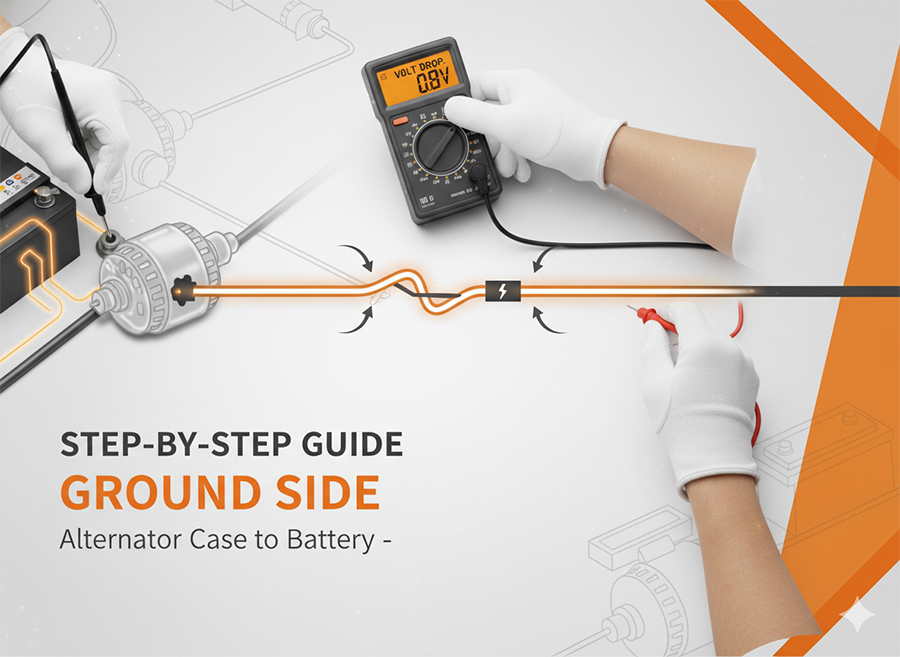

Step-by-Step Guide: Ground Side Test

Goal: Measure voltage loss between the alternator’s ground path and the battery negative terminal.

Steps:

1. Keep the engine running with all accessories on.

2. Place the red lead on the alternator case (bare metal).

3. Place the black lead on the battery negative terminal.

4. Read the voltage.

You should see less than 0.2 volts. Anything higher means poor grounding — usually corrosion, loose bolts, or a damaged ground strap between the engine and chassis.

The ground circuit is often ignored because it “looks fine,” but in reality, it’s one of the most common failure points. A bad ground can mimic a weak alternator or dying battery and send technicians chasing ghosts.

In Conclusion

Voltage drop testing separates guesswork from precision. It’s the secret weapon of professional diagnosticians — a method that tells you exactly where voltage is being lost, without replacing parts unnecessarily.

So next time a charging system acts up, don’t stop at the battery test. Follow the current’s path, measure its losses, and you’ll uncover the real story. Because in the world of electricity, what you don’t see — or can’t measure — is what hurts you most.
