When you turn the key or press the start button, a symphony of components springs into action. We've previously discussed essential players like solenoids. Today, let's shine a spotlight on another unsung hero working tirelessly under your hood: the Armature.

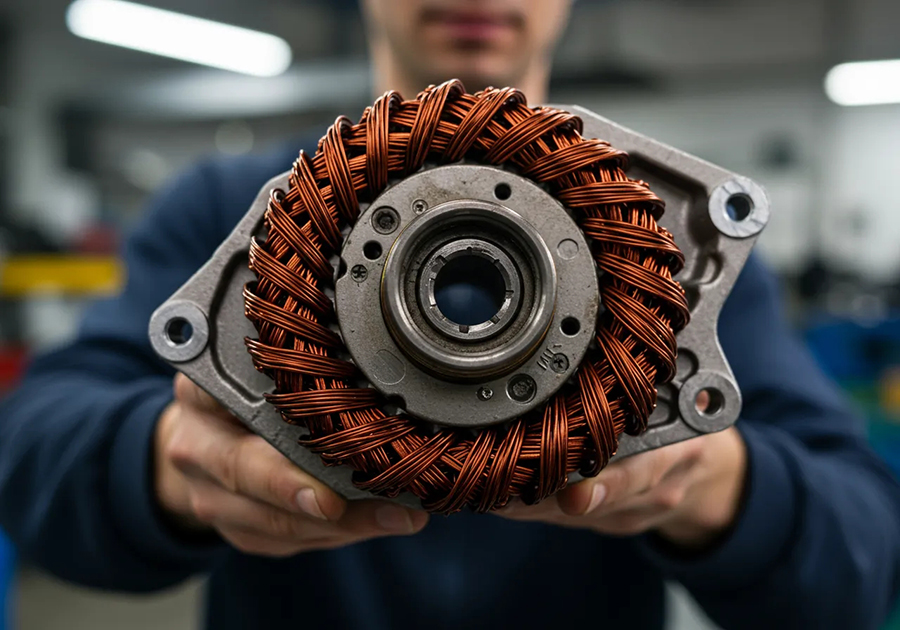

Found within both your vehicle's starter motor and alternator, the armature is, in essence, the core rotating component responsible for the critical electromechanical energy conversion. Without a properly functioning armature, your engine wouldn't start, and your battery wouldn't charge.

What Exactly is an Armature?

At its heart, an armature typically consists of:

· A Central Shaft: Provides the axis for rotation.

· A Laminated Iron Core: Mounted on the shaft, this core is made of thin, insulated steel laminations. This design helps concentrate the magnetic field and reduce energy losses (known as eddy currents).

· Copper Windings (Coils): Insulated copper wire is wound around the slots in the iron core. These windings are where the electrical magic happens.

· A Commutator: A segmented copper cylinder mounted on one end of the shaft. Carbon brushes (in DC motors/generators) ride on these segments to deliver or collect electrical current to/from the rotating windings.

The Armature in Action: Two Key Roles

1. In a Starter Motor:

When you start your vehicle, electricity from the battery flows through the starter's field coils (or permanent magnets) and the armature windings via the brushes and commutator. This creates powerful magnetic fields. The interaction between the magnetic field of the armature and the stationary field coils generates a strong rotational force (torque) on the armature shaft. This torque is then transferred, typically via a Bendix drive, to the engine's flywheel, cranking the engine to life. Think of it as a powerful, compact electric motor designed for short, intense bursts of work.

2. In an Alternator:

Once the engine is running, the alternator takes over electrical duties. The engine's crankshaft, via a serpentine belt, spins the alternator's rotor (which in this context, particularly in claw-pole designs, acts as the armature, or more accurately, the rotating field). As this rotor (with its field windings energized) spins within the stationary stator windings, it induces an alternating current (AC) in the stator. This AC is then rectified into direct current (DC) to charge the battery and power the vehicle’s electrical systems. Here, the armature's rotation is converting mechanical energy from the engine back into electrical energy.

Why is the Armature So Important?

The armature is fundamental.

· Starting Power: A faulty armature in the starter (e.g., shorted windings, worn commutator) means weak or no cranking.

· Charging Capability: A damaged armature (rotor) in the alternator can lead to insufficient or no charging, resulting in a dead battery and stranded vehicle.

Its robust design allows it to withstand high electrical loads and rotational speeds. However, like any component, it can wear or fail over time due to heat, contamination, or mechanical stress.

Understanding the function of components like the armature provides a deeper appreciation for the intricate engineering that keeps our vehicles reliably on the road. It’s a testament to how fundamental principles of electromagnetism are harnessed for everyday convenience and necessity.
