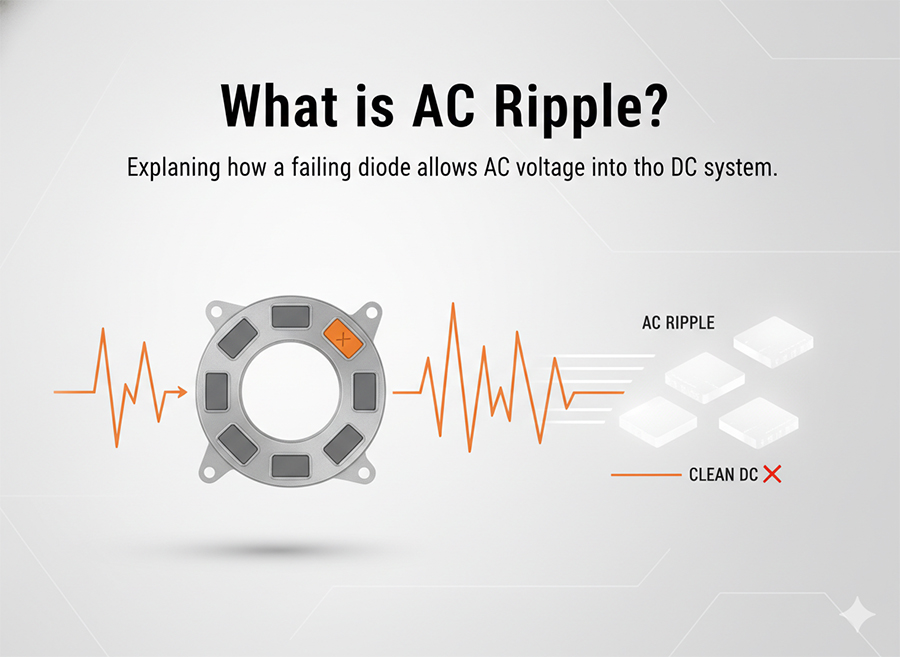

What Is AC Ripple?

An alternator’s job is to generate alternating current (AC) and convert it intodirect current (DC) through a set ofdiodes known as the rectifier bridge. When everything is healthy, the output is smooth, steady DC power suitable for charging the battery and powering the vehicle’s electronics.

But when one or more of those diodes fail, the alternator starts leaking AC voltage into the system. This unwanted residual AC signal — known as AC ripple — rides on top of the DC voltage. Even a small amount of it is enough to cause trouble, because modern automotive electronics are designed for pure, stable DC.

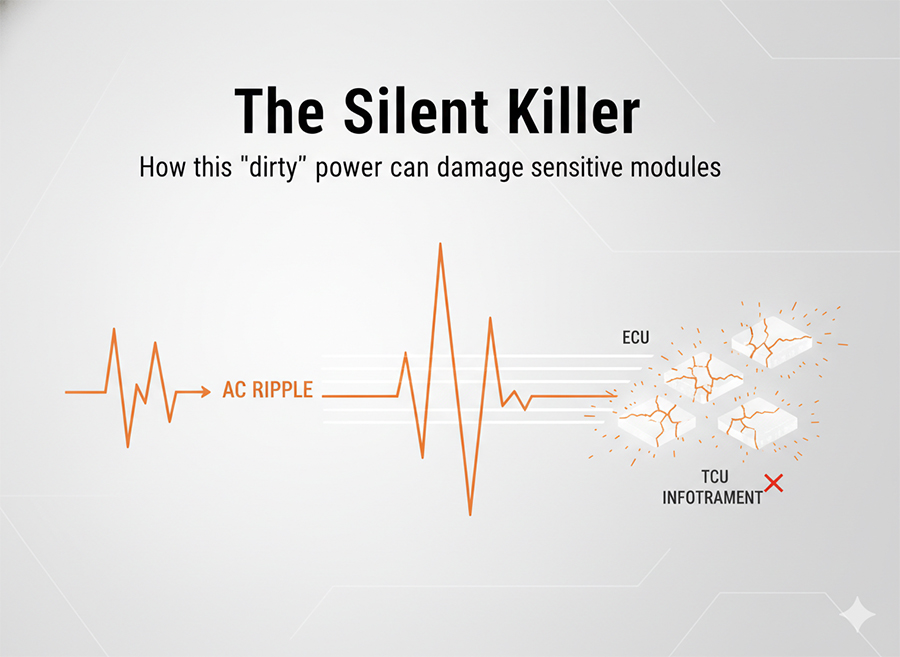

The Silent Killer

AC ripple doesn’t blow fuses or throw obvious warning lights. Instead, it acts like an electrical parasite, introducing subtle chaos into the system. Over time, this “dirty” power can:

• Corrupt signals in sensitive control modules like the ECU (Engine Control Unit) or TCU (Transmission Control Unit)

• Cause infotainment screens to flicker or reboot intermittently

• Trigger random sensor fault codes that seem unrelated

• Shorten the lifespan of batteries and voltage regulators

Think of it as background electrical noise that slowly erodes your car’s reliability from the inside out.

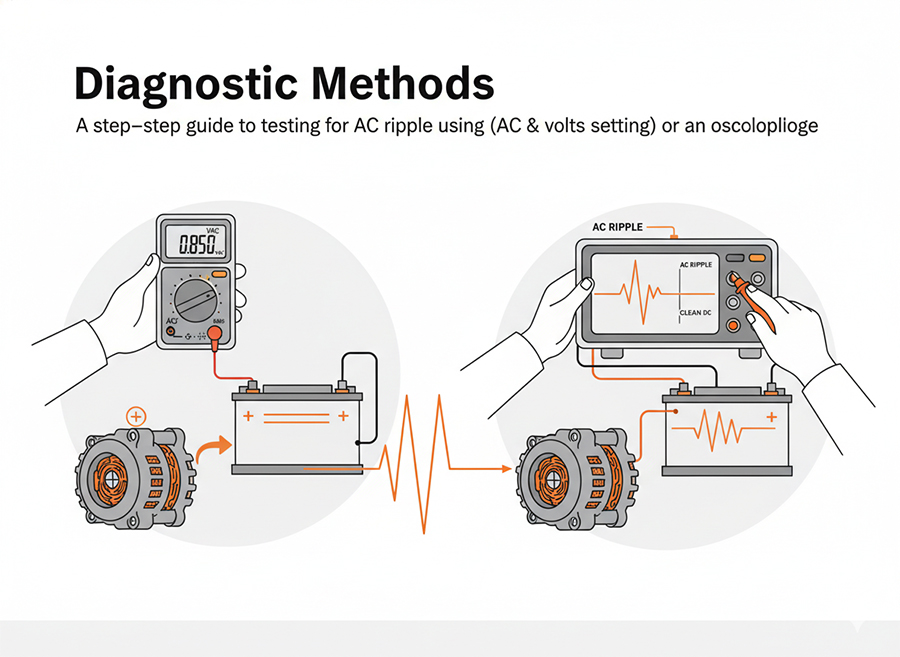

Diagnostic Methods

Testing for AC ripple is simple but often overlooked — and that’s what makes it so valuable for professional diagnosis.

Using a Digital Multimeter (DMM):

1. Set the meter toAC volts (not DC).

2. Place the probes across the battery terminals while the engine is running.

3. A healthy alternator should show less than 0.1 volts AC. Anything above0.3 volts AC usually indicates a failing diode.

Using an Oscilloscope:

For a more detailed look, connect the scope to the battery positive and negative terminals. A clean system will show a nearly flat line; a faulty one will reveal a distinct ripple waveform — regular peaks and valleys corresponding to the alternator’s three-phase output.

This method not only confirms ripple but can pinpoint which diode in the bridge is weak or open, based on the waveform pattern.

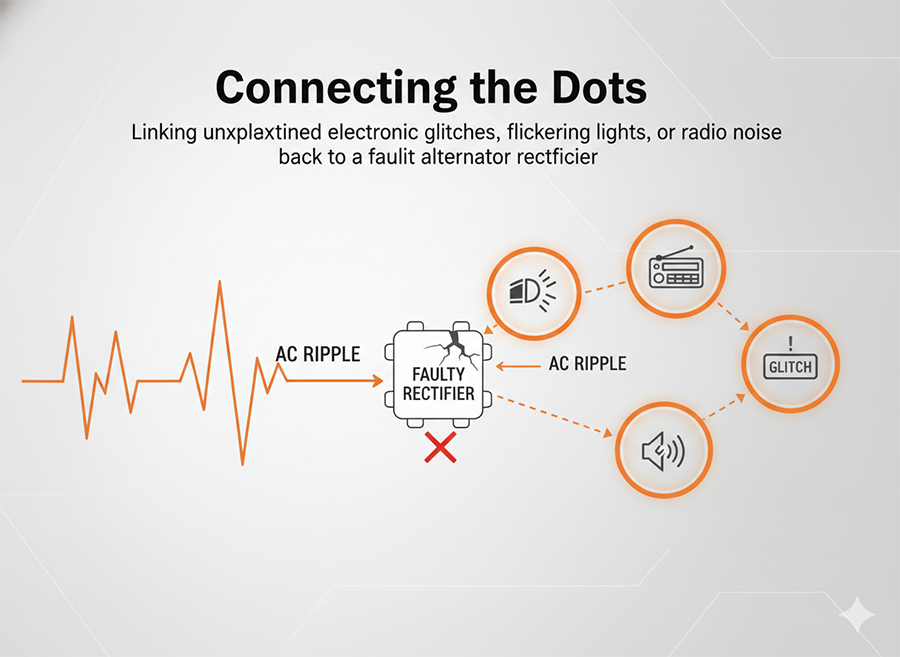

Connecting the Dots

If you’ve been chasing strange electrical gremlins — flickering dash lights, unexplained check engine codes, or even radio static that changes with engine speed — the alternator may be the culprit.

AC ripple is the hidden saboteur of modern vehicles. By adding a quick AC voltage check to every charging system test, you can catch failing diodes long before they destroy an expensive control module or leave the customer stranded.

In short, the cleanest power isn’t just about volts — it’s about purity of current. And a few minutes with a multimeter can save thousands in electronic repairs.
