When upgrading a vehicle’s electrical system, most people focus on one thing: amperage. A high-output alternator can certainly deliver more current, but without the right wiring, that extra power can never reach where it’s needed. That’s where the “Big 3” wiring upgrade comes in — a simple yet crucial modification that ensures your new alternator actually performs as promised.

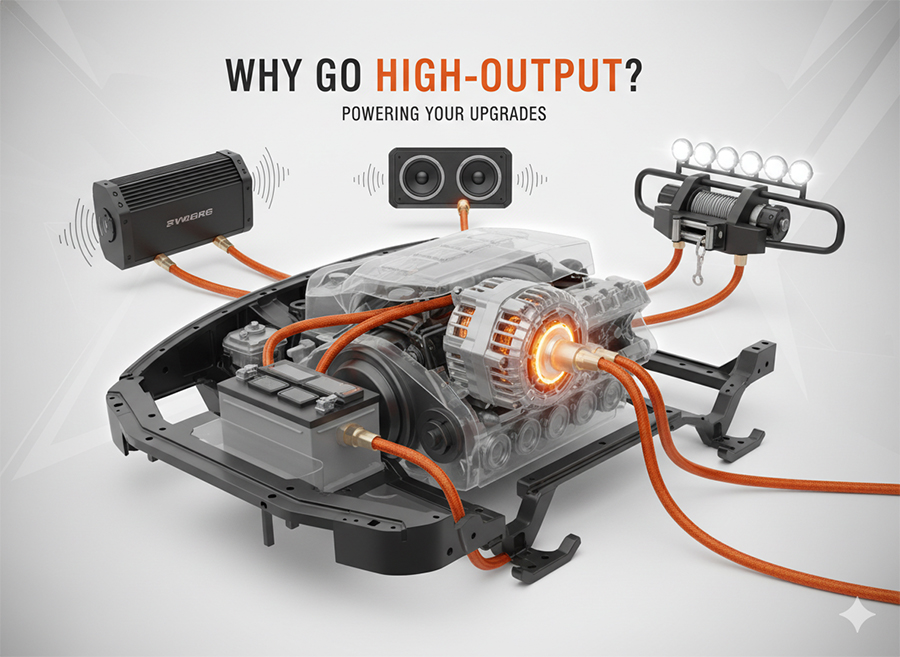

Why Go High-Output?

The modern vehicle isn’t just about getting from point A to point B. Enthusiasts are loading their rides with high-powered audio systems, electric winches, LED light bars, and other auxiliary accessories. Each of these adds a significant electrical demand. The stock alternator, designed to support basic OEM systems, often can’t keep up once you start adding serious aftermarket equipment.

A high-output alternator increases the available amperage, ensuring your battery stays charged even under heavy load. However, that power increase means nothing if your wiring can’t safely handle the current. Think of it as trying to water a garden through a coffee straw — the source might be strong, but the delivery is restricted.

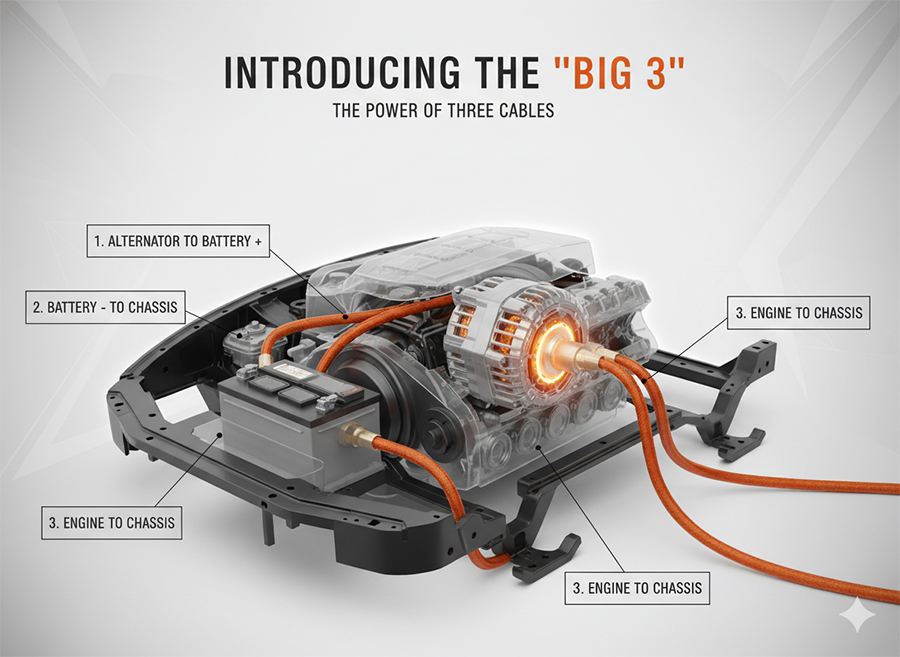

Introducing the “Big 3”

The “Big 3” refers to three major electrical connections that form the backbone of your vehicle’s charging system. Upgrading these with thicker, high-quality cables allows your alternator and battery to work together efficiently.

• Alternator to Battery Positive (+):

This cable carries current from the alternator to the battery. Increasing its capacity minimizes voltage drop and ensures faster, more reliable charging.

• Battery Negative (–) to Chassis Ground:

This connection completes the electrical circuit for the entire vehicle. A poor ground means wasted power and erratic electrical behavior. A heavier cable improves grounding stability and current return.

• Engine Block to Chassis Ground:

The engine and chassis must share a solid ground path. Upgrading this cable ensures the alternator’s output can travel freely through the engine block and into the vehicle’s frame.

Together, these upgrades create a low-resistance pathway for current to flow — allowing your high-output alternator to deliver its full potential.

The Bottleneck Effect

Factory wiring is designed with tight cost and performance tolerances. Stock cables are usually sufficient for a standard 100–150A alternator, but once you install a 250A or 300A unit, those wires become a choke point. When wires are too thin for the load, several problems emerge:

• Voltage Drop: The system can’t deliver full voltage to components, causing dim lights, weak audio, and slower charging.

• Heat Build-Up: Undersized wires resist current flow, generating excessive heat that can melt insulation or damage connectors.

• Performance Loss: You might upgrade to a high-output alternator, but without upgraded wiring, you’ll never actually see the full amperage output.

In short, the stock wiring turns your electrical system into a bottleneck, preventing efficient power delivery and risking component failure.

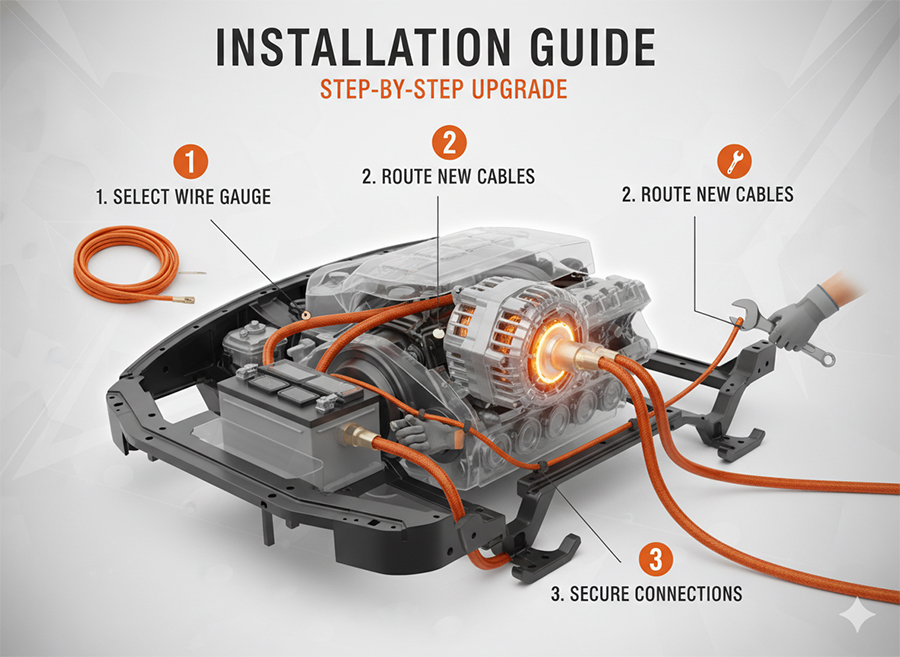

Installation Guide

Performing a Big 3 upgrade is straightforward, but attention to detail is key for both safety and performance.

Choose the Right Wire Gauge:

For most high-output alternators (200–300A),1/0 AWG (zero-gauge) oxygen-free copper wire is recommended. The larger the wire, the less resistance and heat.

Use Quality Terminals and Fuses:

Every connection should be crimped securely with proper lugs and covered with heat-shrink tubing. Add fuses on both ends of the alternator-to-battery cable to protect against shorts

Prep Your Grounds:

Before installing new ground cables, clean contact points down to bare metal. Use dielectric grease to prevent corrosion.

Route and Secure:

Keep cables away from hot exhaust parts or sharp edges. Use zip ties and protective sleeving for a clean, professional finish.

With proper materials and care, a Big 3 upgrade can be completed in a couple of hours — and the difference in electrical performance is immediate and lasting.

In Conclusion

A high-output alternator is only as strong as the wiring that supports it. Without the Big 3 upgrade, your electrical system is like a high-performance engine with a clogged intake — technically powerful, but practically restricted. By upgrading these three key cables, you unlock the full potential of your alternator, protect your components, and ensure stable, efficient power delivery across your entire vehicle.

It’s more than just amps — it’s about building the foundation your electrical system truly deserves.
