You’ve done everything right. Your car was struggling to start, so you tested the battery, and it's good. You even had the alternator checked, and it's charging perfectly. Yet, the problem persists: a slow, labored crank that sounds like the battery is weak, especially when the engine is hot.

It’s one of the most frustrating issues a car owner can face. When the main components check out, the problem is often invisible, hidden within the electrical pathways of your vehicle.

The culprit is frequently "voltage drop," a common but often overlooked issue. This test helps you find the "hidden" reason your starter isn't getting the power it needs.

What is Voltage Drop?

Think of your car's electrical system like a plumbing system. Voltage is the water pressure, and electrical current is the flow of water. A thick, clean cable is like a wide, clear pipe, allowing energy to flow easily.

Resistance is like a clog or a kink in that pipe. It can be caused by corrosion inside a cable, a loose connection, or a frayed wire. This resistance restricts the flow of electricity, causing the voltage to "drop" by the time it reaches its destination. Even with a powerful new battery, high resistance can starve your starter motor of the energy it needs to crank the engine effectively.

How to Find It: The Voltage Drop Test

This professional diagnostic test is surprisingly simple to perform with a basic digital multimeter. It precisely measures the resistance in your starting circuit. For this test, you will need a helper to crank the engine while you take the readings.

What you’ll need:

· A digital multimeter.

· A helper.

There are two main circuits to check: the positive side (power) and the negative side (ground). A problem in either one can cause identical symptoms.

1. Testing the Positive Side (Power Circuit)

This test checks the path from the battery to the starter motor.

· Step 1: Set your multimeter to a low DC volts scale (e.g., 20V).

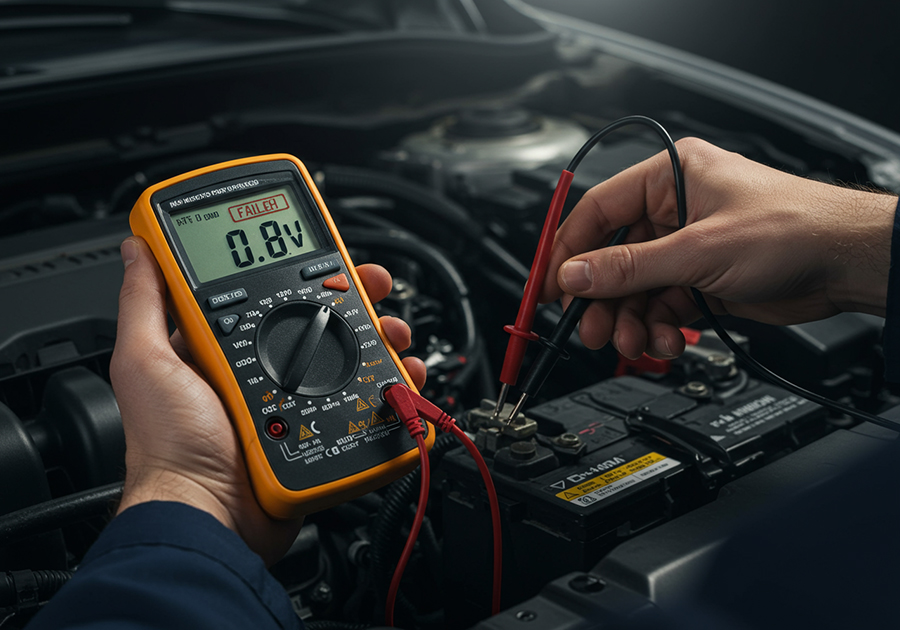

· Step 2: Connect the red multimeter probe directly to the positive (+) battery post (not the cable clamp, the post itself).

· Step 3: Connect the black multimeter probe to the large power stud on the starter solenoid where the main battery cable attaches.

· Step 4: Have your helper turn the key to crank the engine for a few seconds. Watch the multimeter reading while the engine is cranking.

Reading the Results:

· Good: A reading of 0.5 volts or less is acceptable. This indicates a clean, efficient path for electricity.

· Bad: A reading higher than 0.5 volts signifies excessive resistance. The problem could be a corroded battery terminal, internal corrosion in the battery cable, or a poor connection at the starter.

2. Testing the Negative Side (Ground Circuit)

A bad ground is one of the most common and misdiagnosed electrical problems. This test checks the ground path from the engine block back to the battery.

· Step 1: Keep the multimeter on the same DC volts setting.

· Step 2: Connect the red multimeter probe to the metal casing of the starter motor or a clean, unpainted bolt on the engine block.

· Step 3: Connect the black multimeter probe directly to the negative (-) battery post.

· Step 4: Again, have your helper crank the engine and observe the reading.

Reading the Results:

· Good: A reading of 0.2 volts or less is ideal.

· Bad: A reading higher than 0.2 volts points to a poor ground connection. This is often caused by a corroded, loose, or broken main ground strap between the engine and the vehicle's chassis, or the ground cable from the chassis to the battery.

Why This Test Matters

A voltage drop test allows you to look beyond the parts themselves and diagnose the health of the entire circuit. A brand-new starter and battery are useless if the cables connecting them can't deliver the necessary power. This problem is completely invisible to the naked eye.

Instead of guessing or replacing parts unnecessarily, you can pinpoint the exact source of the electrical bottleneck. Armed with this knowledge, you can clean connections or replace a specific cable, saving time, money, and solving one of the most perplexing starting issues in automotive repair.
