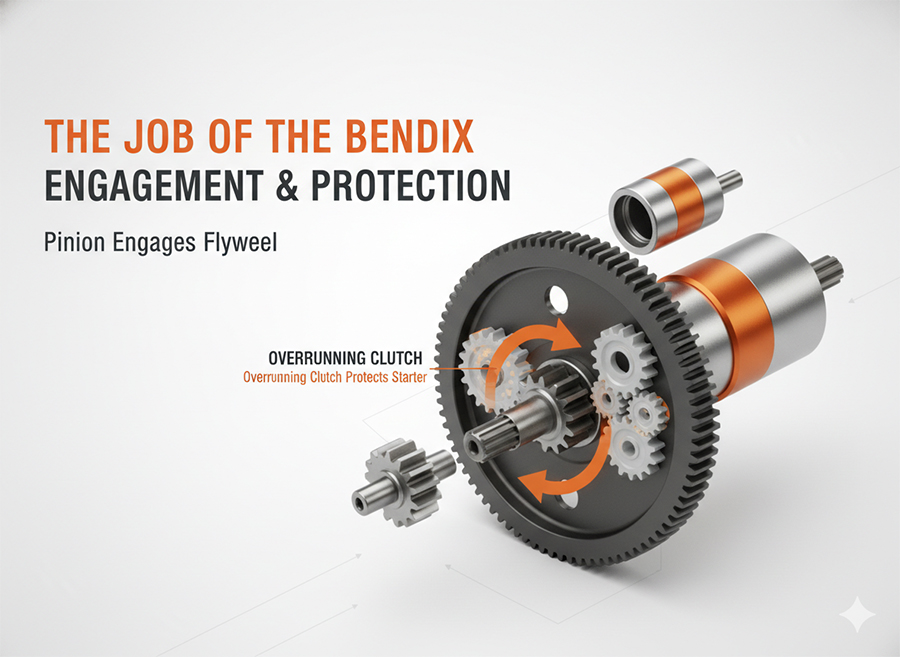

The Job of the Bendix

The starter drive, often called the Bendix, performs two essential duties that make cranking an engine possible:

1. Engagement: When the solenoid pushes the drive forward, the pinion gear meshes with the flywheel teeth to transfer torque from the starter motor to the engine.

2. Protection: Once the engine fires, the overrunning clutch inside the Bendix allows the gear to spin freely, preventing the now-faster engine from back-driving the starter motor — a crucial self-preservation feature.

Failure Mode #1: The Whirring Sound

A classic symptom of Bendix failure is the“whirring but no crank” condition. You’ll hear the starter motor spin rapidly, but the engine remains motionless.

This happens when the overrunning clutch inside the drive fails to lock up under torque. The clutch slips internally, allowing the pinion gear to spin without transmitting power to the flywheel.

In such cases, the motor itself is fine — it’s the clutch portion of the drive that’s lost its grip.

Failure Mode #2: The Grinding Noise

When the engine produces a harsh metal-on-metal grinding sound during cranking, it’s almost always mechanical misalignment or gear damage.

• Worn or broken pinion teeth prevent smooth engagement with the flywheel.

• Damaged flywheel/flexplate teeth (often from prolonged grinding or misaligned installation) can cause partial engagement — where the pinion “skips” along the flywheel rather than locking in.

Once these teeth are damaged, each start attempt worsens the wear, quickly escalating from a minor annoyance to a full no-start condition.

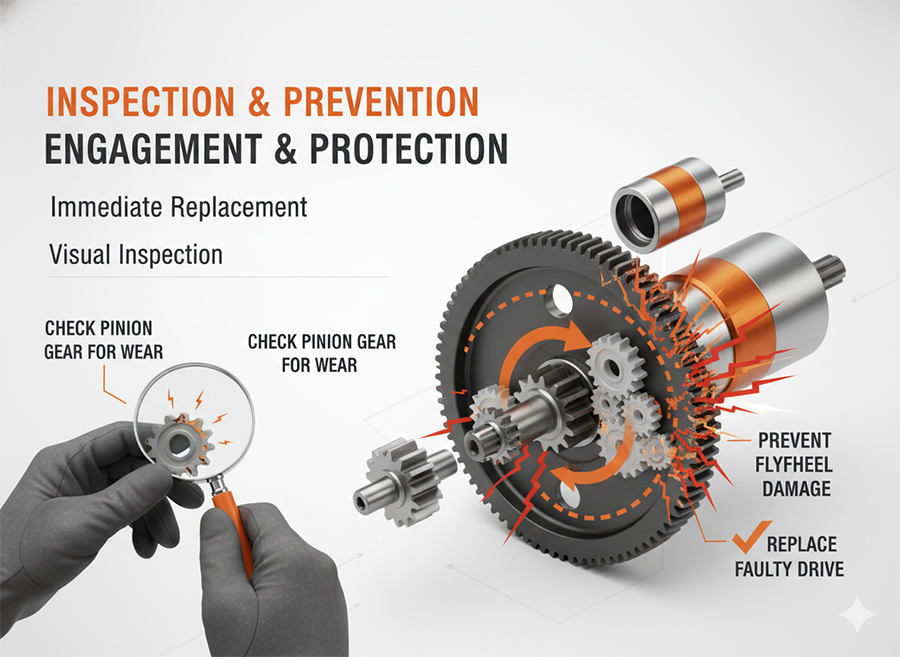

Inspection and Prevention

Whenever a starter is removed, always inspect the pinion gear under good light. Look for:

• Rounded or chipped teeth

• Burnishing (polished metal spots) from incomplete engagement

• Excessive end play or rough clutch feel when turned by hand

If the drive shows any of these symptoms, replace it immediately. A worn Bendix can destroy a perfectly good flywheel — a far more expensive repair.

To prevent recurrence, ensure proper alignment, confirm the solenoid fully extends the drive, and always use any factory shims or spacers specified by the manufacturer.
